Solar Lighting Tower

Home / Products / Solar Lighting Tower / MPPT Asian Mobile Energy Storage Solar Light Tower
MPPT Asian Mobile Energy Storage Solar Light Tower

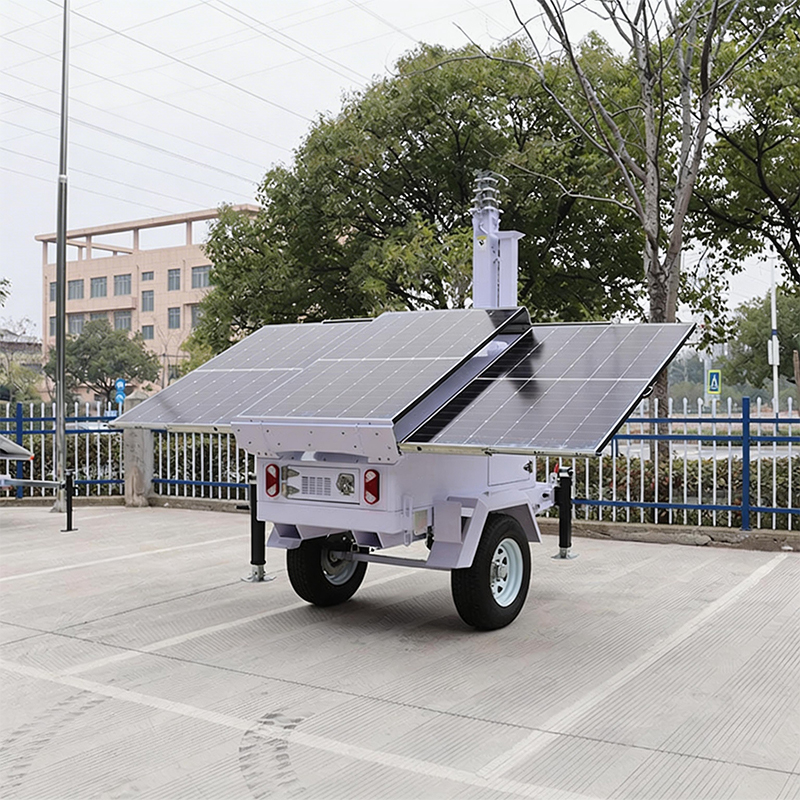

  • MPPT Asian Mobile Energy Storage Solar Light Tower

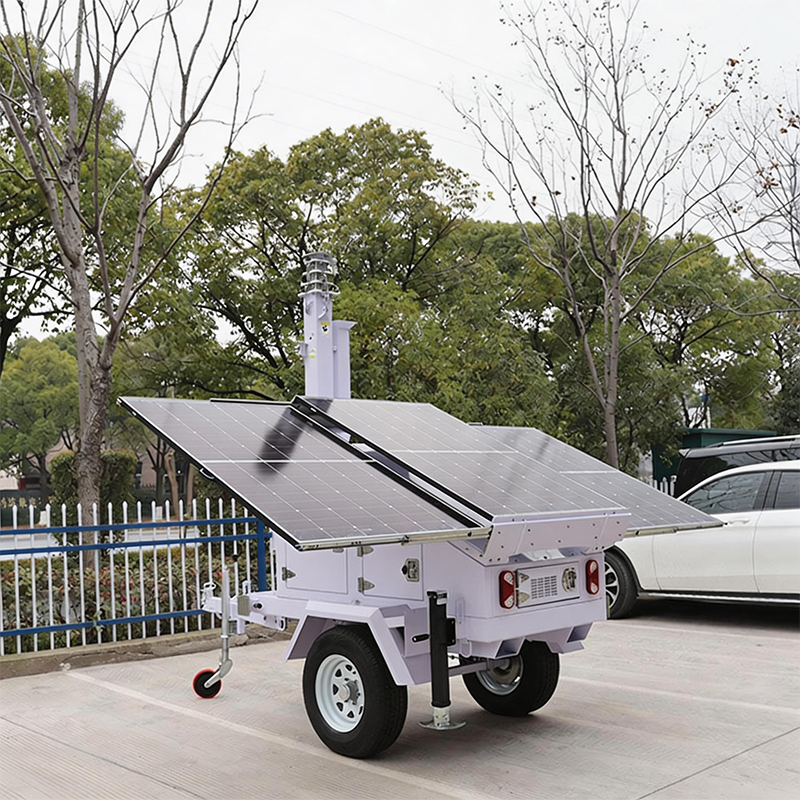

  • MPPT Asian Mobile Energy Storage Solar Light Tower

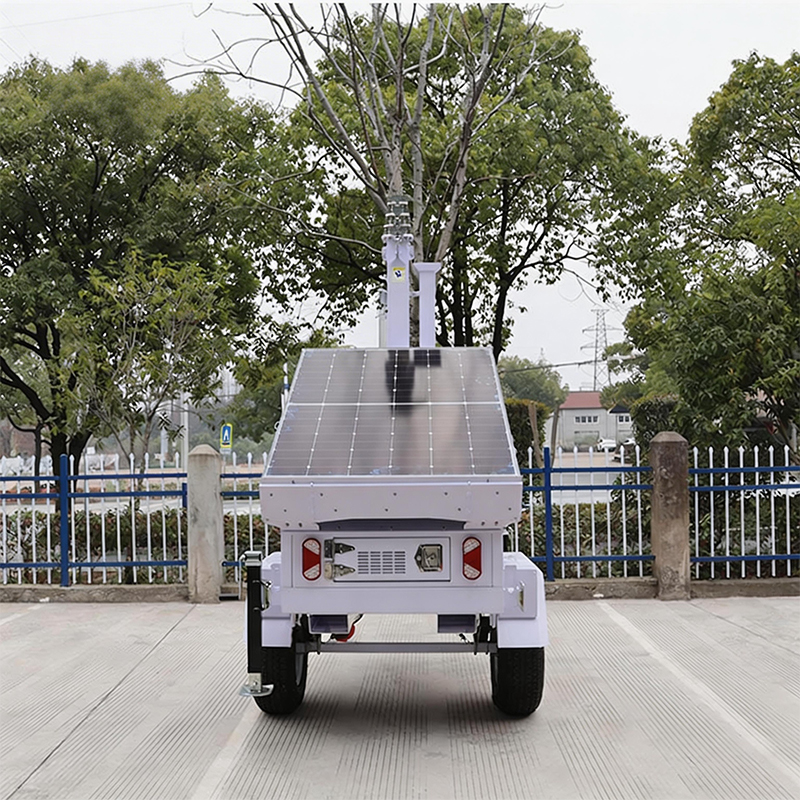

  • MPPT Asian Mobile Energy Storage Solar Light Tower

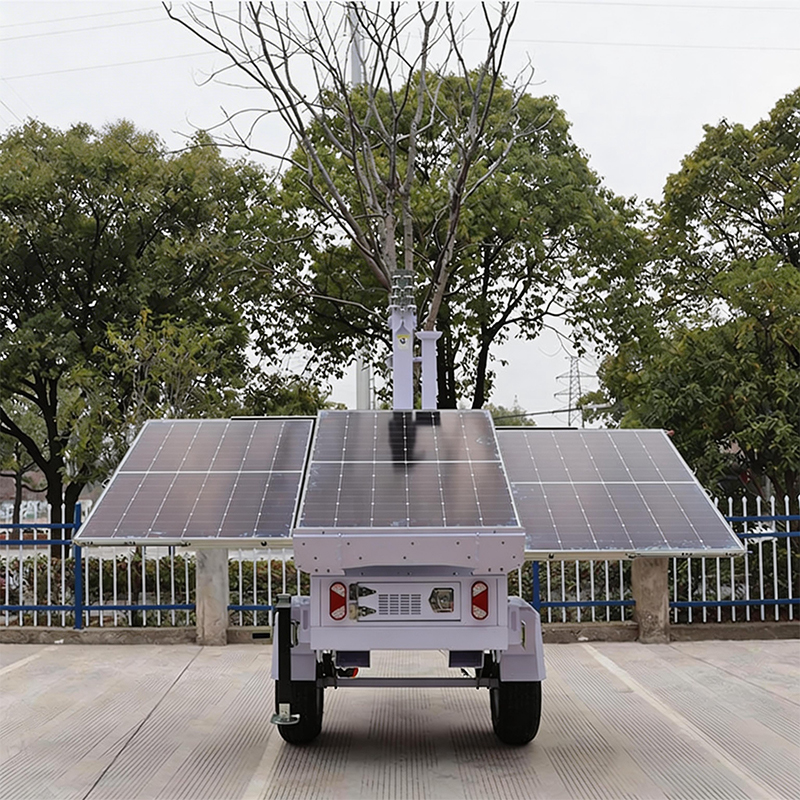

  • MPPT Asian Mobile Energy Storage Solar Light Tower

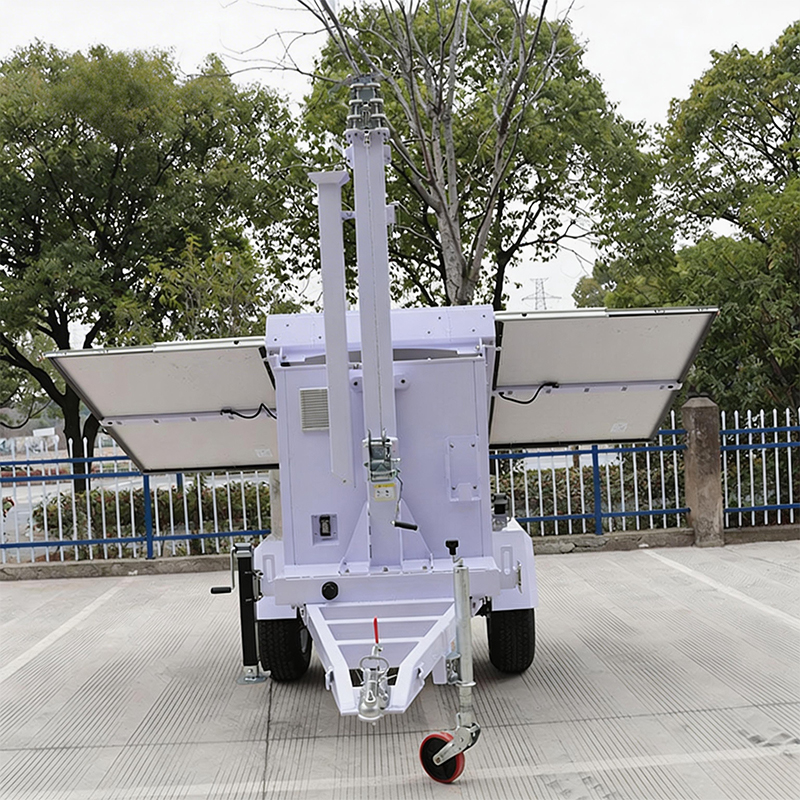

  • MPPT Asian Mobile Energy Storage Solar Light Tower
  • MPPT Asian Mobile Energy Storage Solar Light Tower
Solar Lighting Tower

MPPT Asian Mobile Energy Storage Solar Light Tower

An MPPT Asian Mobile Energy Storage Solar Light Tower is an advanced off-grid lighting system designed to provide reliable illumination and portable energy storage for outdoor and emergency applications. It integrates solar photovoltaic panels, an MPPT charge controller, battery storage, LED lighting, and a mobile trailer structure into a single compact unit.
MPPT technology automatically adjusts the electrical operating point of the solar panels to ensure they produce the maximum possible power under different sunlight conditions. Compared with traditional controllers, MPPT systems can increase charging efficiency by up to 95–99%, allowing the batteries to charge faster and store more energy during the day.

Contact Us
PREV: Fast Delivery Green Power Solar Light Tower
NEXT: Lithium Battery Polycrystalline Silicon Solar Light Tower
  • Tower Dimensions: Lighting Fixture Details:
    Length: 3500mm Type of Light: LED
    Width: 1500mm Lamp Wattage: 60/100W
    Height: 3000mm No.of Lights: 4/6
    Weight: 1200kg Light Output(W): 240/400/600
    Trailer Details: Lumens Per Watt: 150
    Trailer Type: Single Axle Working Life Time(hr): 50000
    Tire and Rim Size: 14" Light Bar Rotation: 355 Degrees
    Stabilizer Supports: 4Supporting leg Light Bar Tilt: Optional
    Drawbar: A Frame Mast Raise/Extension: Manual/Electric/Hydraulic
    Tow Hitch: 50mm Ball/70mm Ring Mast Height(m): Optional
    Mud Guard/Wheel Chock: Special Design Coil Cable: 4*4sqmm/4*6sqmm
    Backup Generator: Optional Wind Rating Speed: 100km/h
    Working Temperature: -35~60

    Model List of Solar Tower Lighting
    Model Lamp Panel Battery Mast
    BY3P-A 4×60W/4×100W/6×100W 3×335W 4×200AH/6×150AH/6×200AH 6/7/9/12M
    BY3P-A 4×60W/4×100W/6×100W 3×335W 4×200AH/6×150AH/6×200AH 6/7/9/12M
    BY4P-A 4×60W/4×100W/6×100W 4×335W 4×200AH/6×150AH/8×150AH 6/7/9/12M
    BY4P-A 4×60W/4×100W/6×100W 4×335W 4×150AH/6×150AH/8×200AH 6/7/9/12M
    BY4P-A 4×60W/4×100W/6×100W 4×335W 4×200AH/6×150AH/8×150AH 6/7/9/12M
    BY4P-A 4×60W/4×100W/6×100W 4×335W 6×150AH/8×150AH/8×200AH 6/7/9/12M
    BY8P-A 4×60W/4×100W/6×100W 8×335W 12×150AH/16×150AH 6/7/9/12M
